Power Range: 1000 - 1600 kVA

3:3

Smart, Scalable, Sustainable Power

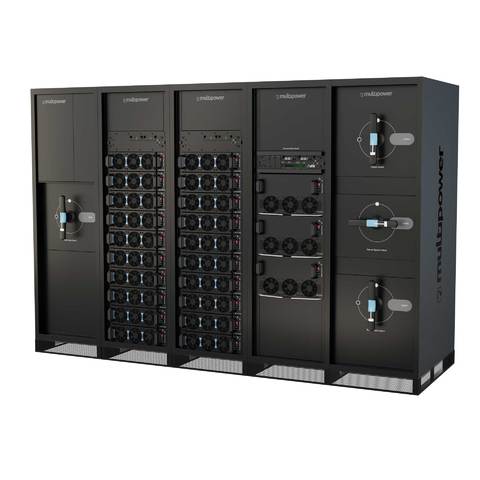

Multi Power2 Scalable is the ultimate modular UPS. It takes all the best features of the Multi Power2 family (MP2) and elevates them to new levels of power, raising the bar for efficiency, flexibility, and performance in high-density computing environments such as data centres and similar mission-critical applications.

Fully Scalable Solution

M2S offers a broad range of solutions (1000-1250-1600 kW versions) that enable you to protect up to 6,400 kW with 4 UPS in parallel, making it the optimal choice for Data Centres and other critical applications.

Designed For Modern Data Centres

The UPS is specifically designed to manage rapid load fluctuations, making it the perfect solution for AI applications. With several configurations available, the unit is adaptable to a variety of different installations requirements without impacting on the existing infrastructure.

Best In Class Efficiency

New 3U 67 kW power modules capable of up to 98.1% efficiency in double conversion online mode, providing the best power supply to critical equipment whilst minimising operating costs and energy losses. Efficiency Control Mode ensures high efficiency at all load levels.

Request Information

HIGHLIGHTS

Ultra-high efficiency up to 98.1% (ON LINE mode)
Efficiency Control Mode ensures high efficiency even at low loads
Best-in-class power density delivers performance in compact footprint
Risk-free ‘pay as you grow’ scalability
Downtime-free maintenance thanks to hot-swappable modules
Robust design eliminates any single point of failure
Optimise initial investment and maximise Total Cost of Ownership (TCO)
Smart Modular Architecture (SMA)
Designed to handle fluctuating loads found in AI Data Centres

Brochures and data sheets

Select File Language:

Multi Power2 Scalable

Technical specifications of the model

Multi Power2 Scalable is the ultimate modular UPS. It takes all the best and proven features of the Multi Power2 family (MP2) and elevates them to new levels of power.

M2S is available in 1000-1250-1600 kW power ratings, making it the optimal choice when providing uncompromising protection to the most critical applications, such as Data Centres.

Furthermore, the UPS is specifically engineered to manage rapid fluctuations of the load, making it the perfect solution for AI applications.

With several configurations available, the unit can adapt to a variety of installations requirements without impacting on the existing infrastructure.

Ultra-High Efficiency & Sustainability

Multi Power2 Scalable is based on our new best-in-class 67 kW new power module built with the latest silicon carbide (SiC) technology, enabling more compact, reliable and robust solutions.

With an ultra-high efficiency of up to 98.1% in ON LINE double conversion mode, it provides the best power supply to critical equipment, while reducing your total cost of ownership through the lowest operating costs on the market. The standard IGBT-based 67 kW power module is still capable of delivering high efficiency of 96.5%.

Adaptable To Your Needs

M2S has been designed to be easily scalable and quickly adaptable to any increase in load, providing a ‘pay-as-you grow approach’.

Any increase of power can be done while the unit remains working in ON LINE double conversion without any disruption to the load.

The units are available in several configurations to adapt to existing electrical infrastructure and to meet any space constrains:

PC0: unit supplied without switches to simplify the integration with the existing electrical infrastructure.
PCS: fully integrated with main input, bypass, manual bypass and output switches.
CT0: space-efficient solution with embedded backfeed protection device and without other switches.
CT2: unit with backfeed protection device and main input and output switches.

Reliable & Resilient

All units belonging to the Multi Power2 family are designed with an innovative internal communication structure based on two independent, fully redundant high-speed buses, ensuring maximum reliability.

Every system component, from individual modules to the full cabinet, is meticulously designed and crafted in Italy, while all parts are rigorously vetted through a stringent approval process to guarantee quality and durability. The entire unit is designed to avoid any single point of failure.

Each module and the entire unit is tested intensively to verify the optimal functioning of all components. Collected data and measurements are continuously analysed, driving ongoing product enhancement and delivering the latest technology to our customers.

The UPS’s extended lifespan is supported by embedded status counters and advanced sensors for temperature and humidity, providing real-time analytics for proactive monitoring.

Downtime-Free Maintenance Guaranteed

Each power module and battery unit is easily accessible from the front of the cabinet and hot-swappable. This ensures any module can be serviced, maintained, or even replaced while the rest of the system continues to protect the load, minimising the Mean Time to Repair (MTTR).

In addition, every connection terminal is accessible straight from the front of the unit to enable safe and easy deployment.
