Central Power Supply (CPS) version of the Sentryum series designed to protect emergency, security and safety applications such as emergency lighting, smoke detectors, fire alarms, and sprinklers. Complies fully with EN 50171.
Delivers several hours of battery autonomy with short recharge times (up to 80% of capacity within 12 hours). Dual input as standard with optional galvanic isolation. Casing meets exacting standards of EN 60598-1.
Central Power Supply compliant with EN 50171 standards
Designed for use in emergency or safety-related applications
Supports continuous overloads of up to 120%
Long battery autonomy and fast recharge times (< 12 hours)
Dual input as standard

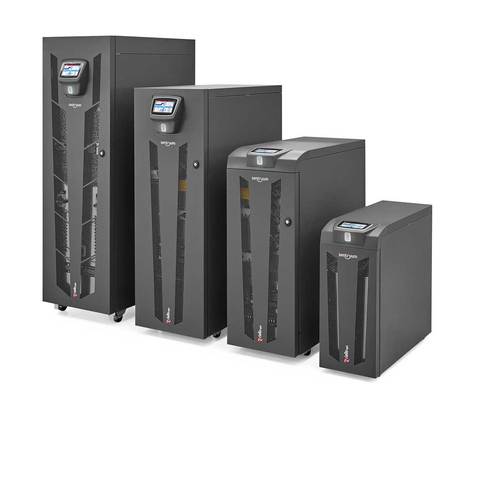

The CSS Sentryum is a Central Power Supply System designed for use in a wide range of emergency and safety-related applications.
It is a reliable solution for situations including emergency lighting, fire safety and prevention (i.e. smoke extractors and fire extinguishers), lifts, safety alarms, warning systems (i.e. carbon monoxide detectors), and safety signs.
Available in 6-8-10-15-20 kVA versions with a choice of three-phase input and output or single/three-phase input, single-phase output.
CSS Sentryum incorporates dual input as standard, which enables you to carry out all the mandatory system easily and safely checks without the risk of the CSS going offline.
During inspections, the bypass line continues to support the load, so you’re protected even in the event of a failure with the main input supply.
CSS Sentryum provides long battery autonomy with quick recharge times guaranteed (up to 80% of full autonomy within 12 hours).
Sophisticated monitoring and battery care systems also maximise lifespan, deploying techniques such as deep discharge protection to reduce battery degradation.
This ensures the safety of your staff or any service engineers carrying out maintenance on your CSS. It also prevents system damage if they have been mistakenly connected with the wrong polarity.
CSS Sentryum can support continuous overloads up to 120% of the system’s nominal power rating. This protection isn’t time limited.
