Reliable power for a sustainable world

Power Range: 30 - 125 kVA
3:3

Compact and reliable frequency converter



Master FC400 is a frequency converter suitable for airport, military, and naval applications requiring a consistent 400 Hz output from either a 50 Hz or 60 Hz input. Adjustable 3-phase output voltage (200-215V).



Galvanic Isolation

Fully integrated output transformer guarantees the separation of the load from mains disturbances under all conditions. Takes incoming power at 50 or 60 Hz and converts it into a consistent and stable 400 Hz output.

Easy Installation And Maintenance

Master FC400 has a compact footprint, for example, a 125 kVA model requires just 0.86 m² floor space. All key components are easily accessed from the front of the UPS. With no need for side or rear clearance, you can install the UPS right up against the wall or in the corner.

Master FC 400

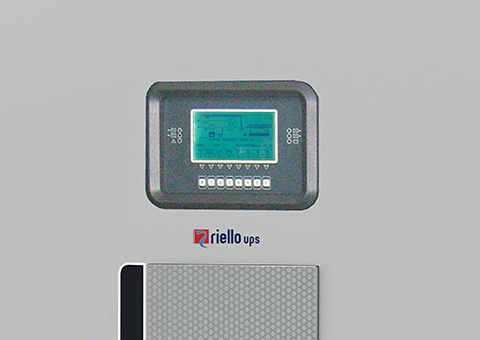

Master FC400 details

HIGHLIGHTS

  • Choice of 5 power ratings

  • Flexible frequency converter (50 or 60 Hz input; 400 Hz output)

  • Ideal solution for airports, military, and naval applications

  • Front to top ventilation enables space-saving back-to-back install

  • Compact footprint helps optimise your floor space

  • Ensures galvanic isolation

  • Can also be used as a standard UPS with battery backup

Brochures and data sheets

Select File Language:

Master FC400

30-125 kVA

en
it
de
es
fr
hu
nl
pl
ro
ru
vn
zh
Technical specifications of the model

Master FC400 is a frequency converter that takes incoming power at 50 or 60 Hz and converts it into a consistent and stable 400 Hz output. Available in 5 different power ratings (30-60-80-100-125 kVA).

Provides proven protection across a range of transportation settings, including airports, radar and flight-control systems, naval or military applications, and for powering test benches. Also available as a UPS with battery backup.



Galvanic Isolation

Fully integrated output transformer guarantees the separation of the load from mains disturbances under all conditions.



Easy Installation And Maintenance

Master FC400 has a compact footprint, for example, a 125 kVA model requires just 0.86 m² floor space.

All key components are easily accessed from the front of the UPS. With no need for side or rear clearance, you can install the UPS right up against the wall or in the corner.
