Reliable power for a sustainable world

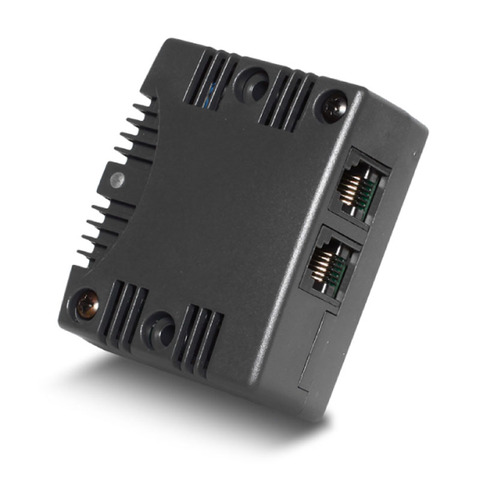

Integrated environmental monitoring for UPS



Environmental sensors for use with the NetMan 208 network card. Help to accurately monitor the temperature and humidity around the UPS, triggering devices such as cooling fans.



Quick And Easy Installation

Sensors simply slot into the NetMan 208 card, which enables easy integration with the PowerShield³ shutdown and management software. Works with a maximum of 6 sensors, which are compact and don’t require their own external power supply.

Choice Of Sensors

Our range incorporates the following UPS environmental sensors:

  • -55 +125 °C Temperature Sensor;
  • -55 +125 °C Temperature and 0-100% humidity Sensor;
  • -55 +125 °C Temperature and I/O digital 0-12 Vdc In, 1A max Out at 48 Vdc Sensor.

HIGHLIGHTS

  • Works in conjunction with the NetMan 208 network communications card

  • -55 to +125 °C temperature sensor

  • -55 to +125 °Ctemperature sensor plus 0-100% humidity sensor

  • -55 to +125 °C temperature sensor plus digital I/O (input/output) sensor

  • Devices are easy to install and configure, doesn’t require a separate power supply

Brochures and data sheets

Select File Language:

NetMan 208

en
it
de
es
fr
hu
nl
pl
ro
ru
vn
zh

Users Guides

Select File Language:

User's manual Environmental sensors

For NetMan 204

en
it
de
es
fr
hu
nl
pl
ro
ru
vn
zh

Dedicated environmental sensors designed for use in tandem with Riello UPS’s NetMan 208 communications card.

Enable you to monitor and record environmental conditions such as temperature and humidity both inside the UPS and in the surrounding area where it’s installed.



Quick And Easy Installation

Sensors simply slot into the NetMan 208 card, which enables easy integration with the PowerShield³ shutdown and management software.

Works with a maximum of 6 sensors, which are compact and don’t require their own external power supply.



Choice Of Sensors

Our range incorporates the following UPS environmental sensors:

  • -55 +125 °C Temperature Sensor;
  • -55 +125 °C Temperature and 0-100% humidity Sensor;
  • -55 +125 °C Temperature and I/O digital 0-12 Vdc In, 1A max Out at 48 Vdc Sensor.
