Reliable power for a sustainable world

Power Range: 1000 - 3000 VA
1:1

Highly versatile single-phase UPS



Sentinel Dual Low Power (SDH) is a versatile UPS designed to deal with non-linear loads. It’s a proven solution for Edge applications, blade servers, VoIP equipment, IT networks, electro-medical devices, emergency lighting, and security/safety systems.



Installation Flexibility

Install the plug and play SDH as either a 2U rackmount UPS or a freestanding tower simply by adding the accompanying handles or optional rack supports. LCD display panel rotates 90 degrees to suit your setup.

High-Quality Power Guaranteed

Designed to handle non-linear loads typically found in blade servers, with a revamped inverter helping to deliver >0.98 power factor and 92% efficiency in online UPS mode. High overload capacity of up to 150% plus high short circuit current on bypass.



Covered by Riello UPS’s 5 year extended warranty (*UK & Ireland only)

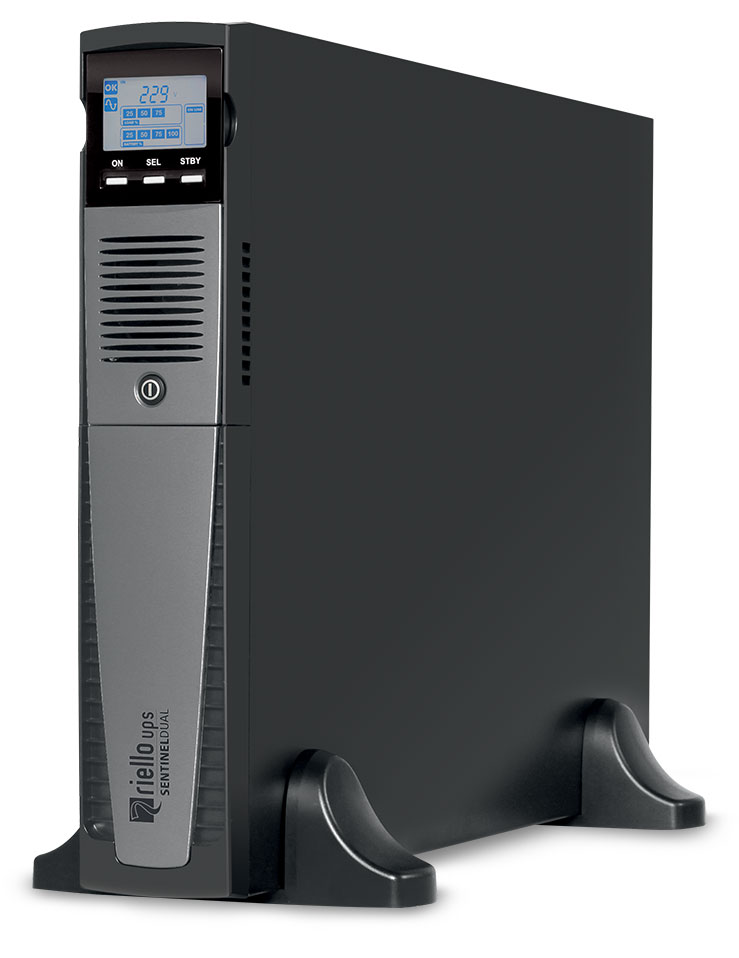

Sentinel Dual SDH Tower

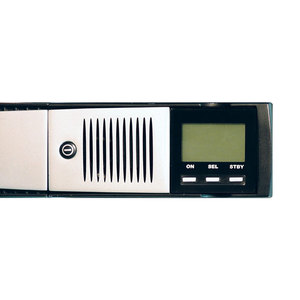

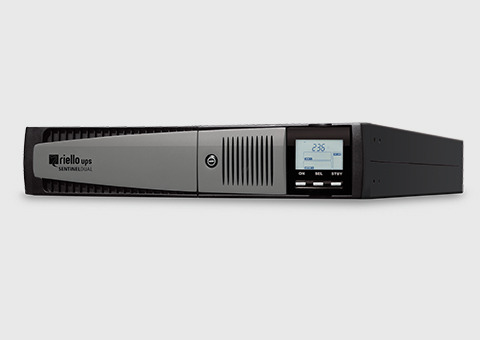

Sentinel Dual SDH - Rack configuration

HIGHLIGHTS

  • Installation flexibility (2U rackmount or freestanding tower)

  • Designed to handle non-linear loads so ideal for blade servers

  • Compact design is ideal for Edge applications

  • Reduce power consumption with ECO and Smart Active modes

  • Prioritise your critical loads with our advanced EnergyShare sockets

  • Extended runtime versions available (2200VA and 3000VA models)

  • Rotating LCD display panel shows UPS status, load, and battery level

  • 5-year warranty provides additional peace of mind

Users Guides

Select File Language:

User's manual Sentinel Dual

en
it
de
es
fr
hu
nl
pl
ro
ru
vn
zh

User's manual UPSTools 3.0

RM908 Rev01

Download

Brochures and data sheets

Select File Language:

Sentinel Dual SDH

1-3 kVA

en
it
de
es
fr
hu
nl
pl
ro
ru
vn
zh

Windows

Select File Language:

UpsTools 3.0.0 for Windows

Configuration software for Xp, 2003, Vista, 7, 8.x ,10, 11

Download
Technical specifications of the model

The doubly-versatile Sentinel Dual (Low Power) combines installation flexibility with fantastic functionality and ease of maintenance. The single-phase UPS comes in a variety of 4 power ratings (1000-1500-2200-3000 VA).

Provides perfect protection for blade servers, sensitive electro-medical devices, industrial machinery, and emergency lighting systems. It’s combination of installation versatility, compact design, and outstanding performance make the SDH a proven solution for protecting Edge applications too.

Riello UPS’s 5 year extended warranty provides you with additional peace of mind.



Doubly Versatile

Install the plug and play SDH as either a 2U rackmount UPS or a freestanding tower simply by adding the accompanying handles or optional rack supports.

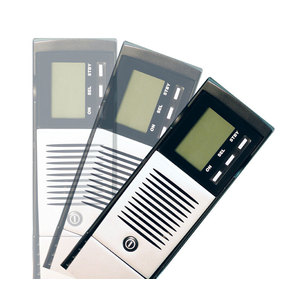

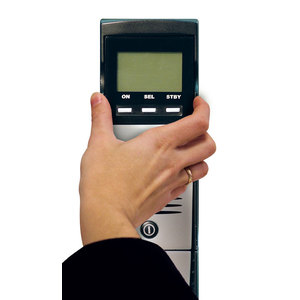

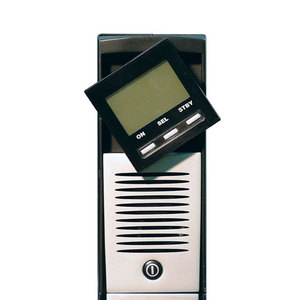

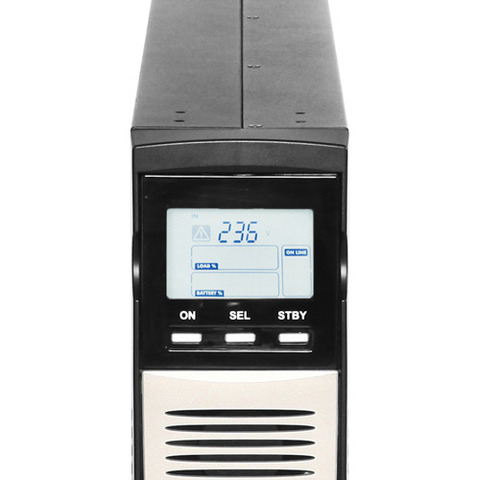

LCD display panel showing key data such as voltage and current operating status easily rotates 90 degrees to suit your installation configuration.



High-Quality Power Guaranteed

Sentinel Dual Low Power is designed to handle non-linear loads typically found in blade servers, with its revamped inverter helping to deliver > 0.98 power factor and 92% efficiency in online UPS mode.

High overload capacity of up to 150% plus high short circuit current on bypass.



Fantastic Functionality

ECO operating mode boosts efficiency to 98%, reducing your power consumption and energy costs. User-replaceable batteries are hot-swappable for easy maintenance.

Fan speed adjusts according to the current load, minimising the amount of noise the UPS generates.



Prioritise Your Critical Loads

Dedicated EnergyShare socket enables you to disconnect less important equipment and loads during power problems. This ensures valuable battery runtime is prioritised towards your most critical loads.



Enhanced Battery Reliability

In-built battery testing runs automatically or can be started manually. Extended runtime versions with additional battery boxes available (2200VA and 3000VA models only) for applications requiring long battery autonomies up to several hours.
