Current Range: 16 A
1:1

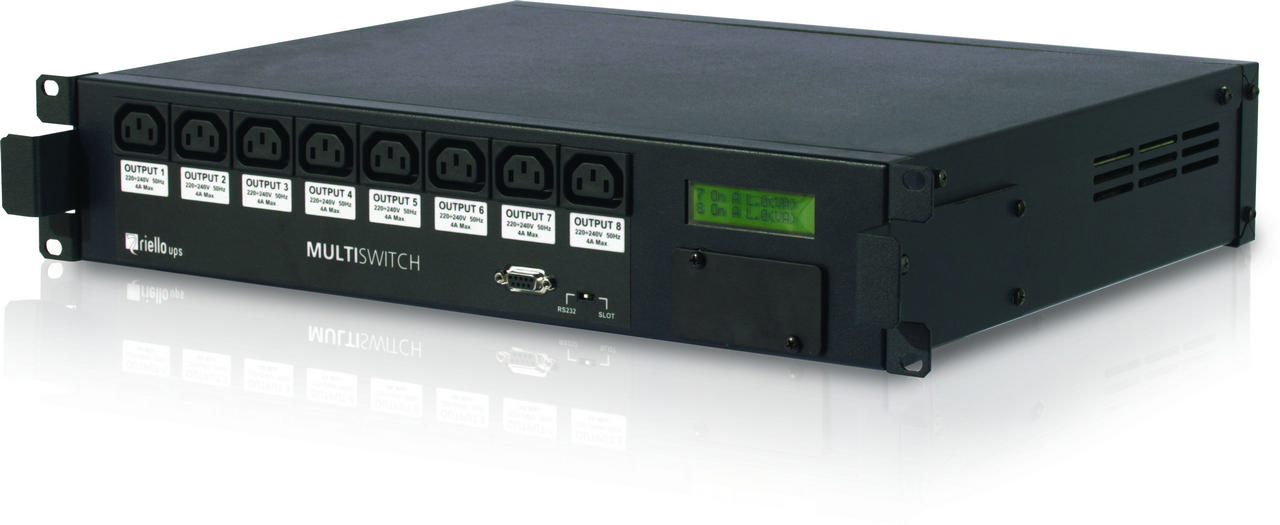

16A automatic transfer switch



Multi Switch (MSW) is a 16A automatic transfer switch that ensures redundant power for equipment connected to 2 AC input sources. If the primary input is disrupted, the load automatically transfers to the other.



Redundant Power

Distributes power from 2 independent inputs. These power sources can be 2 different mains supplies, 2 separate uninterruptible power supplies (including UPSs of different size or type), or a combination.

Protects Against Load And Supply Faults

In the event of a load failure, MSW automatically disconnects the sockets connected to the load. If either of the 2 input sources falls outside of tolerance levels, it automatically transfers to the second power source. If the sources are in phase, switching is almost instantaneous (< 8 msec). Even if they aren’t in phase, transfer is rapid (<21 msec).

MULTI SWITCH 2015

HIGHLIGHTS

  • For installations with 2 separate AC input sources (2 mains, 2 UPS, or a combination)

  • Protect multiple devices thanks to 8 IEC connector sockets

  • Automatically transfers from primary to secondary source

  • Designed for installation in 19-inch cabinets

  • Connectivity slot enables LAN connection and remote management

Brochures and data sheets

Select File Language:

Multi Switch

16 A Automatic Transfer Switch

en
it
de
es
fr
hu
nl
pl
ro
ru
vn
zh

Users Guides

Select File Language:

User's manual Multi Switch

en
it
de
es
fr
hu
nl
pl
ro
ru
vn
zh
Technical specifications of the model

Multi Switch is a user-friendly and proven way to provide full protection against both load and mains supply faults. It delivers direct power distribution to 8 IEC connector sockets from 2 input power sources (2x mains supply, 2x UPS, or a combination).

2U automatic transfer switch delivers higher reliability than a single UPS can by offering redundant power, seamlessly transferring between input sources in the event of any issue without impacting your connected equipment.



Redundant Power

Multi Switch distributes power to connected equipment from 2 independent inputs. These power sources can be 2 different mains supplies, 2 separate uninterruptible power supplies (including UPSs of different size or type), or a combination of mains and UPS.



Protection Against Load Faults

In the event of a load failure, such as a short circuit, MSW automatically disconnects the group of sockets connected to the load, which prevents you from switching off other loads.



Protection Against Power Supply Faults

If either of the 2 input sources falls outside of tolerance levels, Multi Switch automatically transfers the load to the second power source. If the sources are in phase, switching is almost instantaneous (< 8 msec). Even if they aren’t in phase, transfer is rapid (below the 21 msec hold-up time specified in the Server System Infrastructure (SSI) standard), so it won’t have any negative impact on the connected equipment.



User-Friendly Functionality

The 8 IEC sockets limits the need for additional PDUs. While MSW incorporates connectivity slots that enable LAN connections and remote management through software such as PowerShield³.
